TOKYO, July 14, 2014 - (ACN Newswire) - The lithium ion battery market has been growing steadily and seeking an approach to increase battery capacity while retaining its capacity for long recharging process. Structuring materials for electrode at the nanometre-length scale has been known to be an effective way to meet this demand; however, such nanomaterials would essentially need to be produced by high throughput processing in order to transfer these technologies to industry.
 | | Nano-sized silicon oxide electrode for the next generation lithium ion batteries |
This article published in the Science and Technology of Advanced Materials (http://dx.doi.org/10.1088/1468-6996/15/2/025006) reports an approach which potentially has an industrially compatible high throughputs to produce nano-sized composite silicon-based powders as strong candidate for the negative electrode of the next generation high density lithium ion batteries.
The authors have successfully produced nanocomposite SiO powders by plasma spray physical vapor deposition[1] using low cost metallurgical grade powders at high throughputs. Using this method, they demonstrated an explicit improvement in the battery capacity cycle performance with these powders as electrode.
The uniqueness of this processing method is that nanosized SiO composites are produced instantaneously through the evaporation and subsequent co-condensation of the powder feedstock. The approach is called plasma spray physical vapor deposition (PS-PVD). In Figure. 1, raw SiO and PS-PVD SiO composites are shown.
The composites are 20 nm particles, which are composed of a crystalline Si core and SiOx shell. Furthermore, the addition of methane (CH4) promotes the reduction of SiO and results in the decreased SiO-shell thickness as shown in Figure. 2. The core-shell structure is formed in a single-step continuous processing.
As a result, the irreversible capacity was effectively decreased, and half-cell batteries made of PS-PVD powders have exhibited improved initial efficiency and maintenance of capacity as high as 1000 mAhg-1 after 100 cycles at the same time.

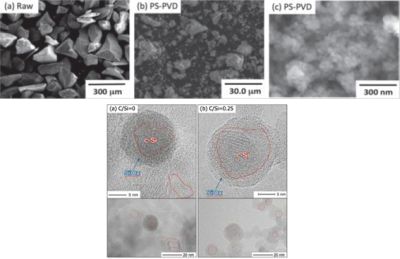

Figure1 (http://bit.ly/U3oysE)
Field emission scanning electron microscope (FE-SEM) images of the raw SiO (a), plasma sprayed (PS-PVD) powder with CH4 addition (C/Si = 1) (b) and its higher magnification (c). Sci. Technol. Adv. Mater. Vol. 15 (2014) p. 025006 (Fig. 2)
Figure 2 (http://bit.ly/1yfs82i)
High resolution transmission electron microscopy images of the PS-PVD Si core and SiOx shell composites processed (a) without and (b) with 1.1 slm methane (CH4) gas addition. The CH4 promotes the reduction of SiO and decreases the irreversible capacity associated with Li-O formation. Sci. Technol. Adv. Mater. Vol. 15 (2014) p. 025006 (Fig. 4)
Reference:
High throughput production of nanocomposite SiO x powders by plasma spray physical vapor deposition for negative electrode of lithium ion batteries. Keiichiro Homma, Makoto Kambara, Toyonobu Yoshida: Science and Technology of Advanced Materials, 15 (2014) 025006. http://dx.doi.org/10.1088/1468-6996/15/2/025006
[1] See, for instance, Figures 1 and 3, J. Appl. Phys. 115, 143302 (2014); doi: 10.1063/1.4870600
For more information, contact
Dr. Makoto Kambara
Dept. Materials Engineering
The University of Tokyo
Email: mkambara@plasma.t.u-tokyo.ac.jp
