Osaka, Japan, Dec 3, 2012 - (ACN Newswire) - HuMANDATA LTD., the manufacturer of various FPGA boards in Japan, today released ACM-012Y series equipped with Altera Cyclone FPGA.
 | | HuMANDATA Launches Altera Cyclone Q240 FPGA Board |

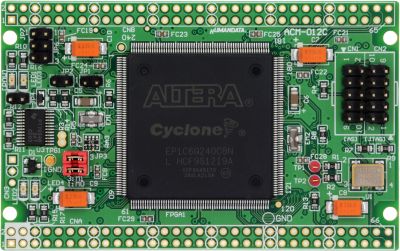

The ACM-012Y series is an evaluation board equipped with a ALTERA's high performance FPGA, Cyclone series (Q240 package). The ACM-012Y series have voltage regulators, user LEDs, a oscillator, and a configuration device on its compact credit-card size board. Only one 5.0 V single power supply is needed. There are 100 user I/Os equip Bus switch ICs for 5V tolerant.
HuMANDATA's ACM/XCM series boards are designed on same PCB size and connector layout. So it is easy to swap the board to another one, and you can quickly try a new FPGA/CPLD.
The ACM-012Y series is compliant with the RoHS Directive, and is designed for lead-free soldering.
For the high resolution image, please click here: http://www.hdl.co.jp/press/2012/12L0081.jpg
For the full press release, please visit: http://www.hdl.co.jp/en/index.php?id=265
For more information, please visit: http://www.hdl.co.jp/en/index.php?id=262
Specifications:
- Altera Cyclone FPGA (EP1C6Q240C8N or EP1C12Q240C8N)
- 5.0 V single power supply operation with on-board 3.3 V/1.5 V regulators
- 5V I/O support with Bus switch ICs
- 100 user I/O, 100 mil (2.54 mm) grid
- On-board Oscillator (30MHz) and External inputs
- Configuration device (Altera, EPCS4SI8N)
- Two User LEDs
- Two Status LED (Power, Power-error)
- Power-on Reset IC for FPGA configuration
- JTAG port (10pin header)
- AS port (10pin header)
- High quality six layers PCB.(Immersion gold)
- Credit-Card-Size 3.386"x 2.126" (86 x 54 mm)
- Tested all I/O
- RoHS compliance
- MADE IN JAPAN
About HuMANDATA LTD.
HuMANDATA LTD. is a manufacturer of various FPGA/CPLD boards as well as electrical equipment in Japan. Established in July 1990, the company can supply superior products with short lead-time, and can produce various kinds of products in small lots. For more information, please visit http://www.hdl.co.jp/en .
